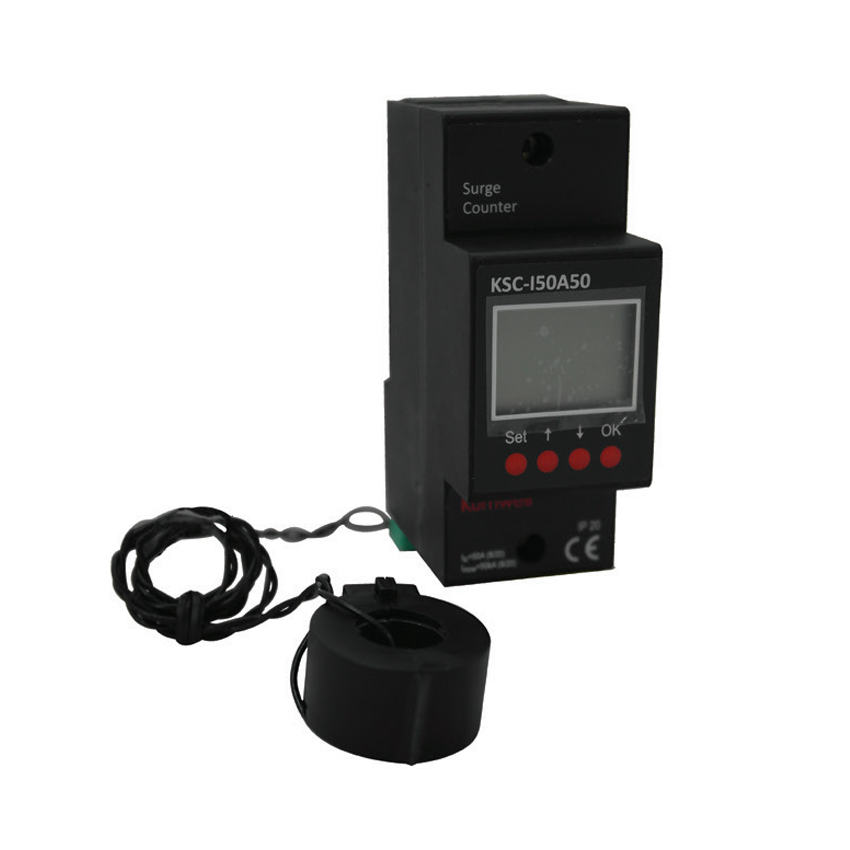

Kumwell KSC-I50A50 is a surge counter with an extra function. Beside surge number count it also logs hour and date for each surge counted. Its surge count and log of previous surges cannot be tempered with, so it can be used for cooperation with insurance companies. With additional time and date logging function, it is now possible to pinpoint the exact time of every surge and correlate it with equipment and power supply problems inside of building.
• LCD screen that shows number of surge, hour and date of surge event
• Button for TIME/DATE setting and log viewing
• Replaceable battery, battery life minimum 3 years
• Easy to install, Snap-on surge current sensor
• Complies with: IEC/EN 62561-6, 61326-1
|
Surge Counter |
|
|
|
Technical Data |
|
KSC-I50A50 |
|
Threshold current (8/20) |
Itc |
50A |
|
Max. counting discharge current (8/20) |
IMCW |
50kA |
|
Number of events logged |
3 digits, 0-999 |
|
|
Operating temperature range |
|
-20°C to 70°C |
|
Mounting on |
35mm DIN rail, EN 60715 |
|
|
Degree of protection |
|
IP 20 |
|
Housing material |
Thermoplastic; extinguishing degree UL 94 V-0 |
|
|
Max.wired diameter through the current sensor |
|
14mm |
|
Sensor cable |
0.5m |
|
|
Dimensions DIN 43880 |
|
2TE |
|
Weight per unit |
150g |
|
|
Packaging dimension (single unit) |
|
110 x 83 x 42 mm |
