These surge protection devices intended for computer networks are specially designed for securing a faultless data transfer within computer networks category 5. They protect input electronic circuits of network cards against damage caused by surge effects in the Lightning Protection Zones Concept at the boundaries of LPZ 0A(B)-1 and higher according to IEC 62305. It is recommended to use these pro-tection devices at the input of protected equipment.

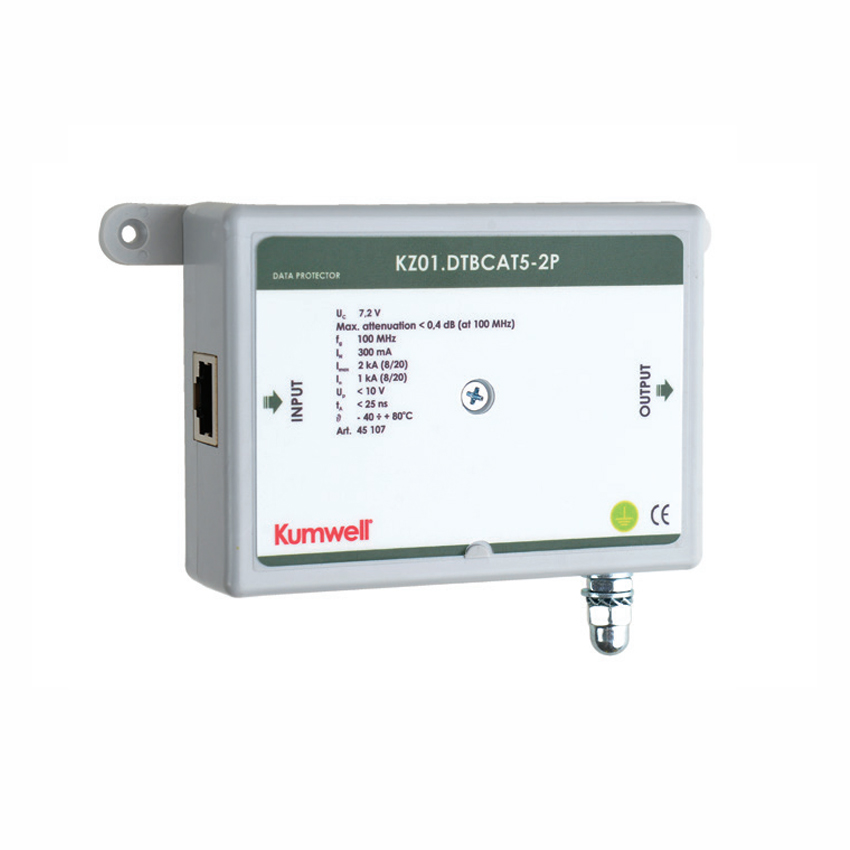

KZ01.DTBCAT5 series is suitable for mounting on a wall. KZ01.DTBCAT5-2P protects two pairs and KZ01.DTBCAT5-4P protects four pairs of conductors.
KZ01.NET-20A RJ/RJ protects one line with two protected pairs. It is supplied in a plastic housing enabling bolt fastening on a wall. Alternatively, it can be attac-hed to the protected appliance with a double-sided tape. Connectors RJ45 are at the input and output side of the device.
|
Technical Data |
|
KZ01.DTBCAT5-2P |
KZ01.DTBCAT5-4P |
KZ01.NET-20A RJ/RJ |
|
|
Number of protected pairs |
|
2 |
4 |
2 |
|
|
Input/output |
RJ45/RJ45 |
||||
|
Nominal voltage |
UN |
|
6 V |
|
|
|
Max. continuous operating voltage |
UC |
7.2 V |
|||
|
Nominal current |
In |
|
300 mA |
|
|
|
C2 Max. discharge current (8/20µs) |
Imax |
2 kA |
2 kA |
- |
|
|
C2 Norminal discharge current (8/20µs) |
In |
1 kA |
1 kA |
20 A |
|
|
C3 Voltage protection level at 1kV/µs |
UP |
< 10 V |
|||
|
Data rate |
|
|
max. 100 Mbit/s |
|
|
|
Max. attenuation |
< 0.4 dB (at 100 MHz) |
||||
|
Near-end crosstalk |
|
|
> 40 dB (at 100 MHz) |
|
|
|
Return loss |
< 14 dB (at 100 MHz) |
||||
|
Series impedance per line |
|
|
1.5 Ω |
|
|
|
Characteristic impedance |
100 Ω |
||||
|
Response time |
tA |
|
< 25 ns |
|
|
|
Parasitic capacitance |
C |
< 42 pF |
< 42 pF |
< 47 pF |
|
|
LPZ |
|
|
0-1 |
|
|
|
Protection type |
IP20 |
||||
|
Operating temperature range |
|
|
-40°C to + 80°C |
|
|
|
Category tested acc. to IEC 61643-21 |
A2, B2, C2, C3, D1 |
