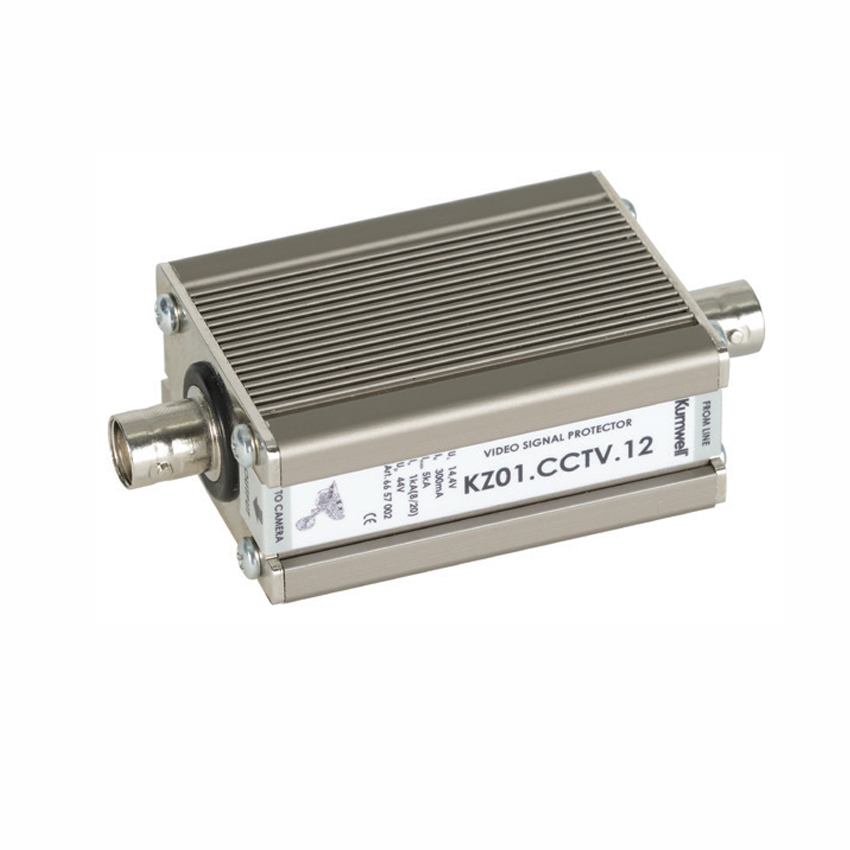

Chống sét lan truyền cho đường truyền cáp đồng trục CCTV

Mã sản phẩm : KZ01.CCTV
Giá bán : Liên hệ
Mô tả :

Xuất xứ: Kumwell/ Thái Lan

Ứng dụng: bảo vệ đường truyền tín hiệu CCTV

Kumwell Transmition-CCTV surge protector is designed to protect video transmission equipment, which process the transferred video signal. Casing of this protector is made out of light alloy, which ensures high mechanical and thermal resistance.

CCTV Surge Protection









Technical Data



KZ01.CCTV.6



KZ01.CCTV.12

Number of protected pairs



1



Connector type





BNC (F/F, F/M)



Nominal voltage

UN

6 V



12 V

Max. continuous operating voltage

UC

7.2 V



14.4 V

Nominal current

IN



300 mA



C2 Max. discharge current (8/20µs)

Imax



5 kA



C2 Nominal discharge current (8/20µs)

In



1 kA



C2 Voltage protection level In (8/20µs)

UP

22 V



44 V

C3 Voltage protection level at 1kV/µs

UP

10 V



20 V

Response time

tA



< 30 ns



Data rate



10 Mbit/s



Parasitic capacitance

C



< 27 pF



Series impedance per line



10



LPZ





0-1



Protection type



IP20



Operating temperature range





-40°C to + 80°C
