Kumwell KLZ.NET series is intended to protect Local Area Networks (LAN) from overvoltage surges and electrostatic discharges created by switching transients in buildings. LAN systems are particularly prone to such disturb-ances because of the often long cable lengths involved which behave like antennas to such atmospheric disturbances.
It provides protection to all 4 lines in the UTP, and is Cat 5 capable.
Ground potential equalization between signal and protective (network or PC chassis) ground is provided.

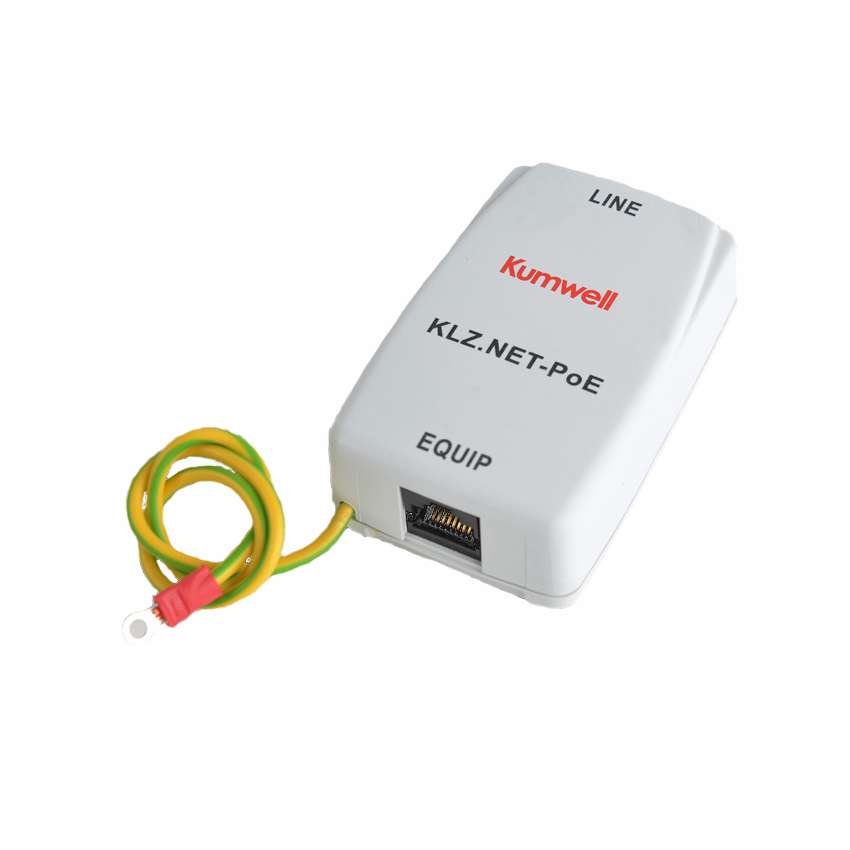

PoE version (KLZ.NET-PoE) is designed to fulfil all versions of PoE applica-tions compatible with standards IEEE 802.3af and IEEE 802.3at.
|
LAN Protection |
|
|
|
|
|
Technical Data |
|
KLZ.NET-CAT5 |
KLZ.NET-PoE |
KLZ.NET-STP |
|
Electrical data |
|
|
|
|
|
Number of protected pairs |
4 |
|||
|
Nominal operating voltage (DC) |
Un |
5V |
48V |
5V |
|
Max. continuous operating voltage (DC) |
UC |
6V |
58V |
6V |
|
Norminal discharge current (8/20µs) |
In (line-line) |
300A |
60A |
300A |
|
(line-PG) |
1kA |
250kA |
1A |
|
|
Voltage protection level In |
UP (line-line) |
35V |
150V |
35V |
|
(line-PG) |
350V |
550V |
350V |
|
|
Response time of overvoltage protection |
tA |
|
< 1 ns |
|
|
Limit frequency |
FG |
100MHz |
||
|
Mechanical data |
|
|
|
|
|
Connection |
|
|
Input/Output: RJ45 sockets |
|
|
Temperature range |
-40°C to + 80°C |
|||
|
Degree of protection |
tA |
|
IP20 |
|
