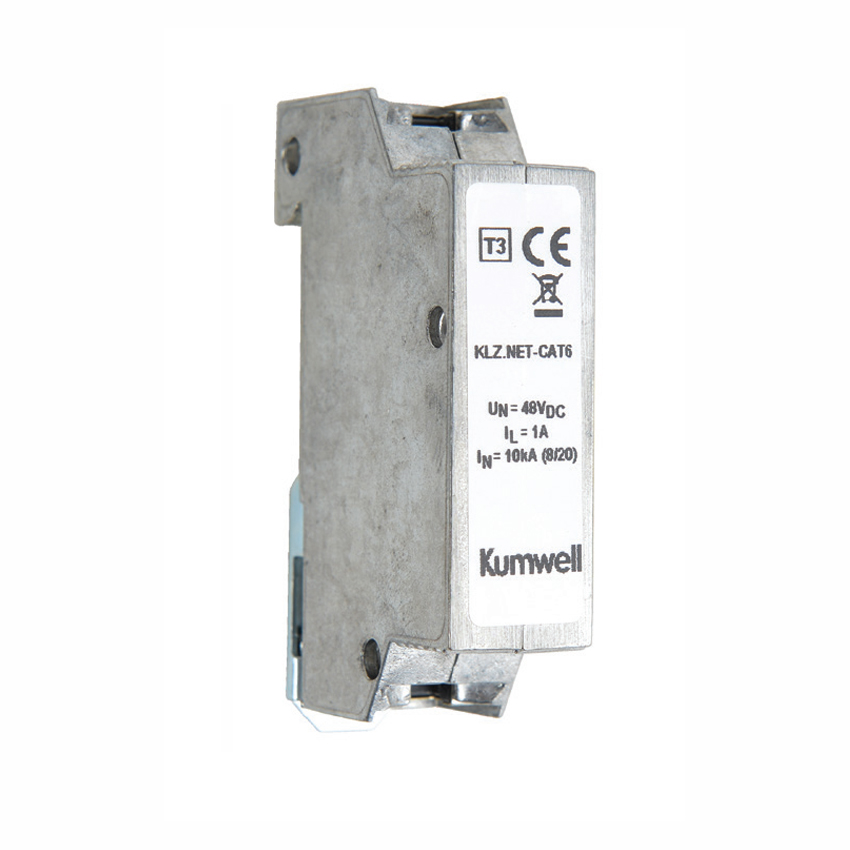

Kumwell KLZ.NET-CAT6 series is intended to protect Local Area Networks (LAN) from overvoltage surges and electrostatic discharges created by switching transients in buildings. LAN systems are particularly prone to such disturbances because of the often long cable lengths involved which behave like antennas to such atmospheric disturbances.
It provides protection to all 4 lines in the UTP, STP and is Cat 6 capable.
Ground potential equalization between signal and protective (network or PC chassis) ground is provided.
Product is designed to fulfil all versions of PoE applications compatible with standards IEEE 802.3af and IEEE 802.3at.
|
LAN Protection |
|
KZ01.DTBCAT5-2P |
|
Technical Data |
|
2 |
|
Electrical data |
|
|
|
Number of protected pairs |
4 |
|
|
Nominal operating voltage (DC) |
UN |
48 V |
|
Max. continuous operating voltage (DC) |
UC |
50 V |
|
Rated load current at 25°C |
IL |
1A |
|
Norminal discharge current (8/20µs) |
In (line-line) |
150A |
|
(line-PG) |
10kA |
|
|
Lightning impluse current (10/350µs) |
Iimp |
1kA |
|
Voltage protection level In |
UP (line-line) |
150V |
|
(line-PG) |
550V |
|
|
Response time of overvoltage protection |
tA |
< 1 ns |
|
Limit frequency |
FG |
250MHz (Class E) |
|
Mechanical data |
|
|
|
Connection |
Input/Output: RJ45 sockets |
|
|
Temperature range |
|
-40°C to + 80°C |
|
Degree of protection |
IP20 |
|
|
Mounting |
|
35mm DIN rail |
