Chi tiết sản phẩm

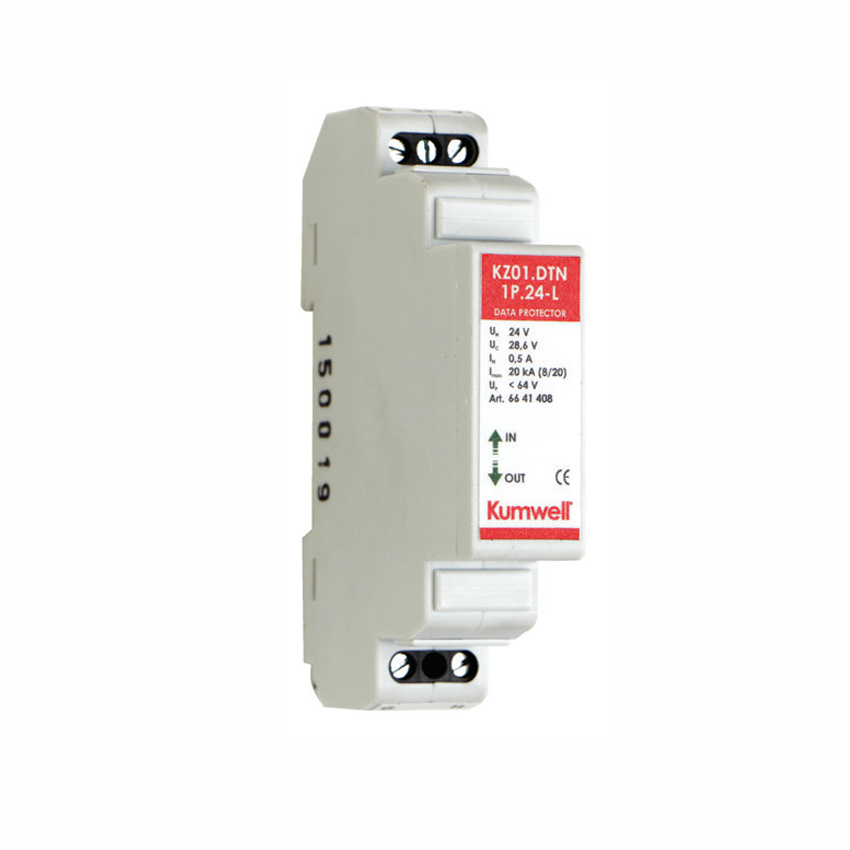

Chống sét lan truyền cho hệ thồng dữ liệu, In=0.5A, Imax=20kA

Mã sản phẩm : KZ01.DTN-L
Giá bán : Liên hệ
Mô tả :

Tiêu chuẩn IEC 61643-21

Xuất xứ: Kumwell/ Thái Lan

Ứng dụng: bảo vệ đường truyền dữ liệu

Kumwell KZ01.DTN-L is a complex range of surge protection devices designed for protection of data, communication, measuring and control lines against surge effects. These surge protection devices are recommended for use in the Lightning Protection Zones Concept at the boundaries of LPZ 0A(B) - 1 according to IEC 62305. All types provide effective protection of connected equipment against common mode and diff-erential mode surge effects according to IEC 61643-21. The nominal current of ind-ividual protected lines IN < 0.5A

These devices consist of gas discharge tubes, series impedance and transils. The number of protected pairs is optional (1-2). These devices are produced for nominal voltage of 6V-80V. Maximum discharge current is 20kA (8/20).

Data Protection

1

KZ01.DTN/1P.6-L

KZ01.DTN/1P.12-L

KZ01.DTN/1P.24-L

Number of protected pairs

2

KZ01.DTN/2P.6-L

KZ01.DTN/2P.12-L

KZ01.DTN/2P.24-L

Nominal voltage

UN

6 V

12 V

24 V

Max. continuous operating voltage

UC

7.2 V

14.4 V

28.6 V

Nominal current

In

0.5 A

0.5 A

0.5 A

D1 Total lightning impulse current (10/350)

Iimp

5 kA

5 kA

5 kA

D1 Lightning impulse current (10/350) line/PE

Iimp

2.5 kA

2.5 kA

2.5 kA

C2 Max. discharge current (8/20)

Imax

20 kA

20 kA

20 kA

C2 Nominal discharge current (8/20)

In

1 kA

1 kA

1 kA

C2 Voltage protection level at In (8/20)

UP

15 V

28 V

64 V

C3 Voltage protection level at 1kV/µs

UP

9 V

18 V

34 V

Response time

tA

< 30 ns

< 30 ns

< 30 ns

Data rate



1 Mbit/s

1 Mbit/s

1 Mbit/s

Series impedance per line



4.7 µH

4.7 µH

4.7 µH

Parasitic capacitance

C

1.5 nF

1.5 nF

1.5 nF

Operating temperature range



-40°C to 80°C

-40°C to 80°C

-40°C to 80°C

Recommended cable cross-section



0.25 – 1.5 mm2

0.25 – 1.5 mm2

0.25 – 1.5 mm2

Category tested acc. to IEC 61643-21



A2, B2, C2, C3, D1

A2, B2, C2, C3, D1

A2, B2, C2, C3, D1



Number of protected pairs

1

KZ01.DTN/1P.30-L

KZ01.DTN/1P.48-L

KZ01.DTN/1P.80-L

2

KZ01.DTN/2P.30-L

KZ01.DTN/2P.48-L

KZ01.DTN/2P.80-L

Nominal voltage

UN

30 V

48 V

80 V

Max. continuous operating voltage

UC

36 V

57.6 V

96 V

Nominal current

In

0.5 A

0.5 A

0.5 A

D1 Total lightning impulse current (10/350)

Iimp

5 kA

5 kA

5 kA

D1 Lightning impulse current (10/350) line/PE

Iimp

2.5 kA

2.5 kA

2.5 kA

C2 Max. discharge current (8/20)

Imax

20 kA

20 kA

20 kA

C2 Nominal discharge current (8/20)

In

1 kA

1 kA

1 kA

C2 Voltage protection level at In (8/20)

UP

75 V

85 V

500 V

C3 Voltage protection level at 1kV/µs

UP

54 V

66 V

120 V

Response time

tA

< 30 ns

< 30 ns

< 30 ns

Data rate



1 Mbit/s

1 Mbit/s

1 Mbit/s

Series impedance per line



4.7 µH

4.7 µH

4.7 µH

Parasitic capacitance

C

1.5 nF

1.5 nF

1.5 nF

Operating temperature range



-40°C to 80°C

-40°C to 80°C

-40°C to 80°C

Recommended cable cross-section



0.25 – 1.5 mm2

0.25 – 1.5 mm2

0.25 – 1.5 mm2
