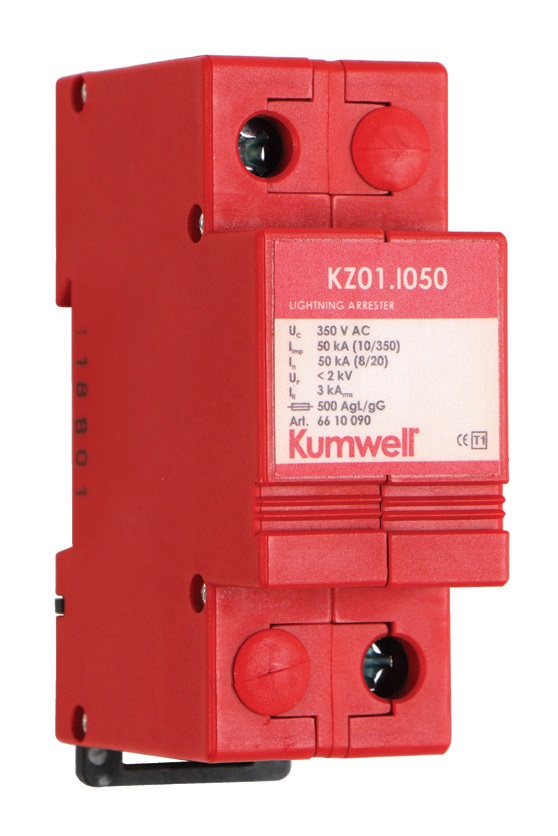

Kumwell KZ01. * is used in industrial installations such as transformers, the main switchboards of large industrial buildings anh places with high risk of a direct lightning strike. It is also suitable for applications in unmeasured parts of electrical installation according to IEC 61643-11
|
Multiple spark gap |
|||||
|
Technical Data |
KZ01.I050 |
KZ01.U0440 |
|||
|
Nominal voltage |
UN |
230 V AC |
400 V AC |
||
|
Max. continuous operating voltage |
UC |
350 V AC |
440 V AC |
||
|
Lightning impulse current (10/350µs) |
Iimp |
50kA |
|||
|
Nominal discharge current (8/20µs) |
In |
50kA |
|||
|
Voltage protection level at Iimp |
UP |
< 2 kV |
< 2.5 kV |
||
|
Temporary overvoltage (TOV) |
UT |
440 V/5 sec |
690 V/5 sec |
||
|
Response time |
tA |
< 100 ns |
|||
|
Follow current interrupting rating |
Ifi |
3 kArms |
|||
|
Max. back-up fuse |
500 A gL/gG |
||||
|
Short-circuit withstand capability |
IP |
25 kAms |
|||
|
LPZ |
0-1 |
||||
|
Protection type |
IP20 |
||||
|
Operating temperature range |
|
-40°C to + 80°C |
|||
|
Mounting on |
Din rail 35 mm |
||||
