Chống sét lan truyền cho nguồn AC cấp III, 5kA

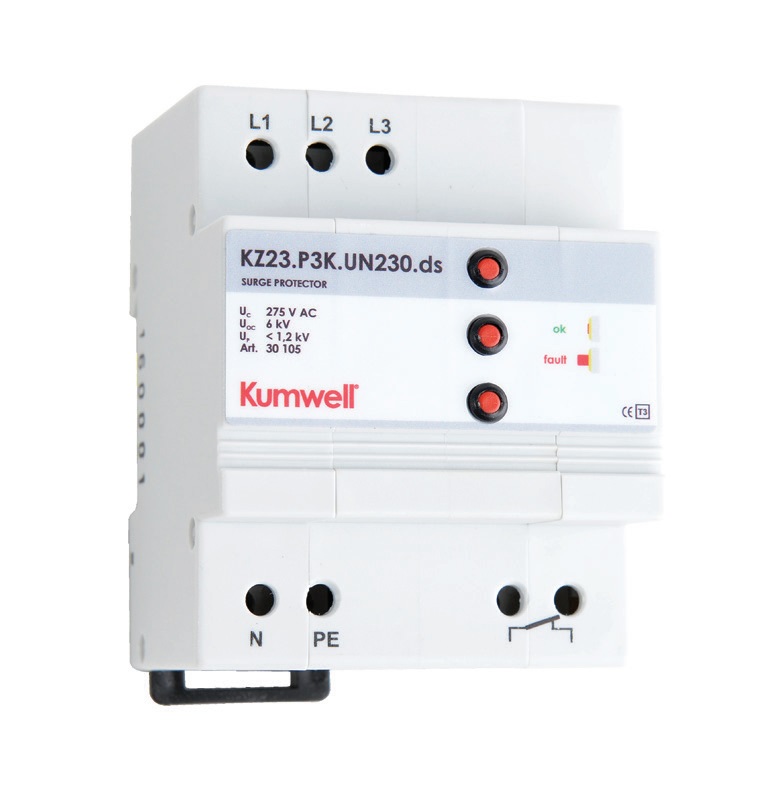

Mã sản phẩm : KZ23.P3K.*.ds
Giá bán : Liên hệ
Mô tả :
Tiêu chuẩn: IEC 61643-11
Xuất xứ: Kumwell/ Thái Lan
Ứng dụng: dùng trong nhà máy công nghiệp, tòa nhà, nhà máy lọc dầu, …

Kumwell KZ23.P3K.*.ds is a three-phase surge arrester type 3 according to EN 61643-11 and Class III according to IEC 61643-11 suitable for use in TNS, TNC and TT systems.

These are parallel devices intended for protection of electronic appliances against impulse surge. All varistors in KZ23.P3K device are titted with thermal fuses to prevent short and also permanent overloading.

The function failure of KZ23.P3K.UN230.ds and KZ23.P3K.UN400.ds devices is indicated by target disconnection of mechanical thermal fuses which react to varistors overheating above c. 120°c. If one of the three thermal fuses reacts, the non-potential contact FAILURE disconnects at the same time.

KZ23.P3K (MOV + GDT surge arrester)
Technical Data   KZ23.P3K.UN230.ds   KZ23.P3K.UN400.ds
Nominal Voltage UN 230 V AC   400 V AC
Max. continuous operating voltage UC 275 V AC   480 V AC
Nominal discharge current  I(8/20) In   3 kA (L/N, L/PE)
5 kA (N/PE)
Combined impulse Uoc   6 kV (L/N, L/PE)
10 kV (N/PE)
Voltage Protection level at Uoc UP < 1.2 kV (L/N)   < 1.5 kV (L/N)
< 1.2 kV (L/PE) < 1.5 kV (L/PE)
< 1.2 kV (N/PE) < 1.5 kV (N/PE)
Power loss at winding temp. 20 °C     < 0.1 W
Response time tA   < 25 ns (L/N)
< 100 ns (L/PE, N/PE)
Recommended backup fuse     16 A
LPZ     2-3
Protection type     IP20
Operating temperature range

  -40°C to + 80°C
Mounting on     Din rail 35 mm
