Copper Lugs

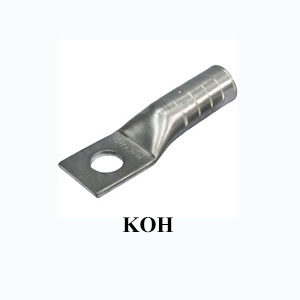

1-Hole Copper Lugs:
Code No. |
Copper Conductor |
Stud Size |
Dimension (In) |
||||||||
AWG / MCM |
mm2 |
I.D |
O.D |
L |
W |
X |
Y |
T |
B |
||
KOH 8-6 |
8 |
- |
1/4 ” |
0.18 |
0.28 |
1.53 |
0.43 |
0.25 |
0.62 |
0.10 |
0.71 |
KOH 6-6 |
6 |
16 |
1/4 ” |
0.22 |
0.31 |
1.93 |
0.48 |
0.25 |
0.62 |
0.08 |
1.07 |
KOH 4-6 |
4 |
25 |
1/4 ” |
0.28 |
0.38 |
1.95 |
0.55 |
0.25 |
0.62 |
0.09 |
1.07 |
KOH 2-8 |
2 |
35 |
5/16 ” |
0.31 |
0.42 |
2.27 |
0.66 |
0.32 |
0.76 |
0.10 |
1.16 |
KOH 1/0-12 |
1/0 |
50 |
1/2 ” |
0.40 |
0.52 |
2.82 |
0.76 |
0.47 |
1.10 |
0.12 |
1.44 |
KOH 2/0-12 |
2/0 |
70 |
1/2 ” |
0.45 |
0.58 |
3.12 |
0.85 |
0.50 |
1.13 |
1.13 |
1.50 |
KOH 3/0-12 |
3/0 |
95 |
1/2 ” |
0.51 |
0.64 |
3.14 |
0.96 |
0.50 |
1.13 |
0.13 |
1.50 |
KOH 4/0-12 |
4/0 |
- |
1/2 ” |
0.58 |
0.71 |
3.24 |
1.06 |
0.50 |
1.13 |
0.14 |
1.56 |
KOH 250-12 |
250 |
120 |
1/2 ” |
0.63 |
0.77 |
3.36 |
1.17 |
0.50 |
1.13 |
0.14 |
1.61 |
KOH 300-12 |
300 |
150 |
1/2 ” |
0.65 |
0.81 |
3.91 |
1.19 |
0.53 |
1.16 |
0.19 |
2.05 |
KOH 350-12 |
350 |
- |
1/2 ” |
0.70 |
0.88 |
3.91 |
1.28 |
0.53 |
1.16 |
0.19 |
2.05 |
KOH 400-16 |
400 |
185 |
5 /8 ” |
0.76 |
0.95 |
4.14 |
1.41 |
0.66 |
1.35 |
0.19 |
2.17 |
KOH 500-16 |
500 |
240 |
5 /8 ” |
0.84 |
1.06 |
4.50 |
1.53 |
0.66 |
1.35 |
0.22 |
2.30 |
KOH 600-16 |
600 Sản phẩm khác
|
