Code.No |
Conductor |
Cable size (Sq-mm) |
Weight (kg) |

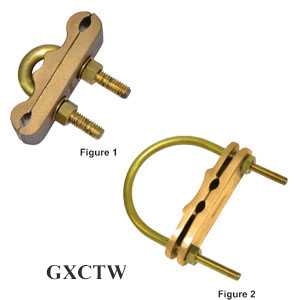

Figure |
||
Tube (in) |
Rod (in) |
O.D Renge (mm) |
||||
GXCTW 127-70 |
- |
1/2 |
12.7 |
25 -70 |
0.38 |
1 |
GXCTW 127-120 |
- |
1/2 |
12.7 |
95- 120 |
0.38 |
1 |
GXCTW 172-70 |
- |
5/8 – 3/4 |
15.9-19.1 |
25 -70 |
0.43 |
1 |
GXCTW 172-120 |
- |
5/8 – 3/4 |
15.9-19.1 |
95- 120 |
0.43 |
1 |
GXCTW 172-240 |
- |
5/8 – 3/4 |
15.9-19.1 |
150 -240 |
0.86 |
1 |
GXCTW 231-70 |
- |
1 |
23.1 |
25 -70 |
0.51 |
1 |
GXCTW 231-120 |
- |
1 |
23.1 |
95- 120 |
0.51 |
1 |
GXCTW 231-240 |
- |
1 |
23.1 |
150 -240 |
0.82 |
1 |
GXCTW 25-70 |
1 |
- |
34.2 |
25 -70 |
0.59 |
1 |
GXCTW 25-120 |
1 |
- |
34.2 |
95- 120 |
0.59 |
1 |
GXCTW 40-70 |
1 1/4-1 1/2 |
- |
42.9 – 48.8 |
25 -70 |
0.45 |
2 |
GXCTW 40-120 |
1 1/4-1 1/2 |
- |
42.9 – 48.8 |
95- 120 |
0.45 |
2 |
GXCTW 50-70 |
2 |
- |
60.8 |
25 -70 |
0.58 |
2 |
GXCTW 50-120 |
2 |
- |
60.8 |
95- 120 |
0.58 |
2 |
GXCTW 65-70 |
2 1/2 |
- |
76.6 |
25 -70 |
0.83 |
2 |
GXCTW 65-120 |
2 1/2 |
- |
76.6 |
95- 120 |
0.83 |
2 |
GXCTW 80-70 |
3 |
- |
89.5 |
25 -70 |
0.86 |
2 |
GXCTW 80-120 |
3 |
- |
89.5 |
95- 120 |
0.86 |
2 |
